installed power greater than 100Wp/m2
MODMEC TRACKER
new type of two-axis tracking installation

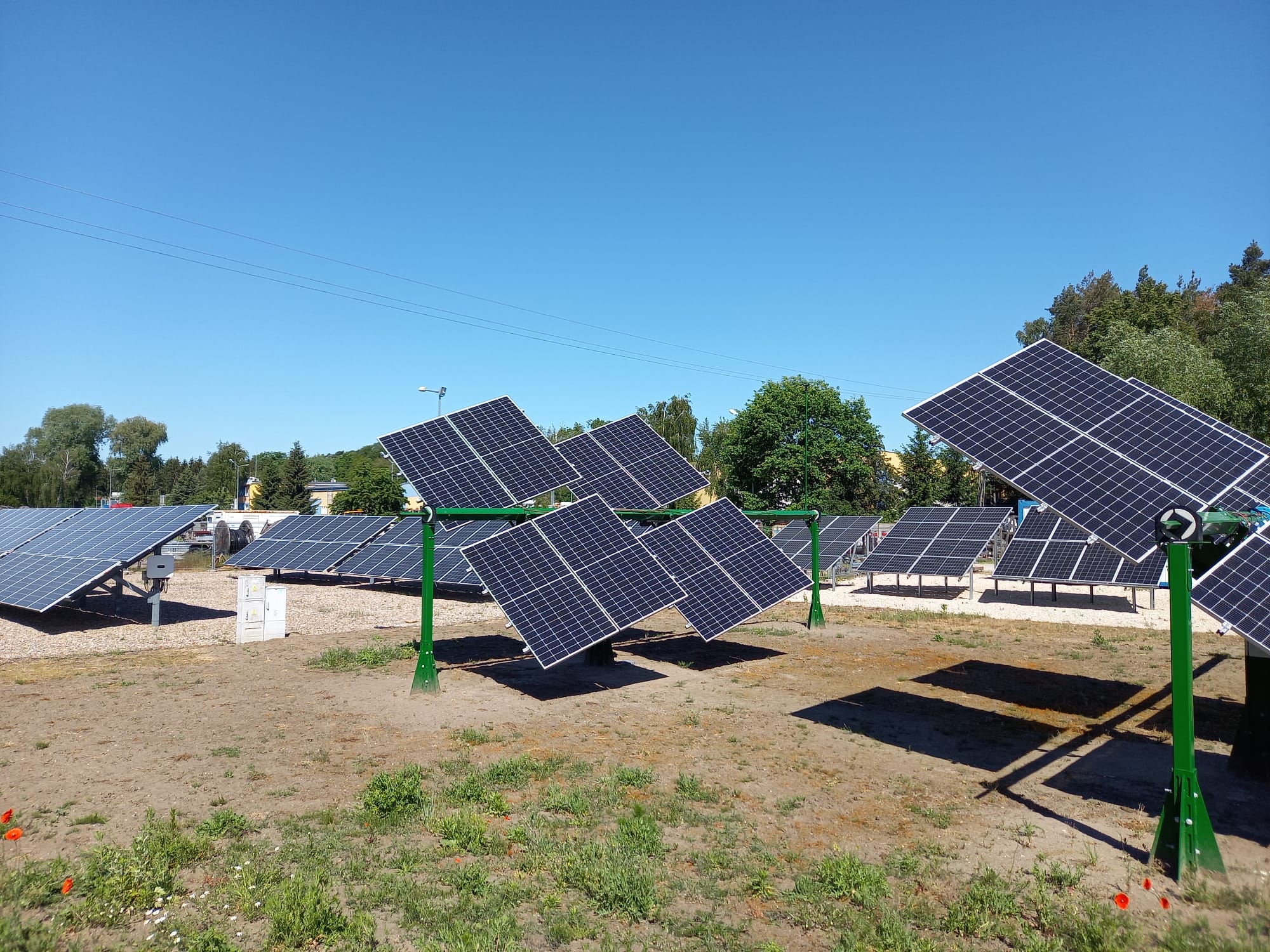

A solar tracker, also called a tracking system, is a construction that allows a photovoltaic installation to track the movement of the sun and position it in the ideal setting - all this in order to obtain the maximum effects that photovoltaics offer. MODMEC Tracker is not only cheaper to build than currently known other two-axis trackers, but thanks to the IT solutions it uses solar energy better than competitive solutions. We are currently cooperating in Poland with the ENEA Capital Group, with which we have built a prototype (7kWh) and research installation. MODMEC tracker has been submitted to the Patent Office of the Republic of Poland - the project is under evaluation, with a very good chance of being granted a patent, the protection of which will be extended around the world.
MODMEC TRACKER consists of: * One gear motor to follow from east to west, * One linear gear motor for correcting panels in north-south orientation, * Dedicated control cabinet with its own power supply (including emergency), * Internet network connection, * Limit sensors for the safety of structures and drives, * Inductive sensors to confirm the safe position, * Absolute encoders to control and read the current position of the tracker in real time, Dedicated application for remote control: tracker location, electricity production on it, monitoring, * GPS determining location, * Sensors that prevent panels on the tracker and rows of trackers from shadowing each other, * Active PV farm controller, * Frames for PV panels adapted to their various dimensions, * Weather station for reading sunlight, wind speed and direction (determining boundary conditions for a safe position), rainfall amount (data is archived), * Lubrication-free bearings resistant to moisture, dirt and UV radiation.
Depending on the cooperation model, MODMEC provides a number of services that are necessary to implement a turnkey project: * 3D designing and technical documentation (SolidWorks), * Providing with dedicated MODMEC TRACKER manufacturing technology for licensing purposes, * Preparation of all necessary documentation for the construction project, * Delivering BOM (bill of materials) for a specific PV farm with its spatial layout, * Support in production planning, * Supervision of the construction, prefabrication and assembling, * Installation of control cabinets, * Full installation and starting the operations, * Application training for MODMEC TRACKERS’ users, * Mechanical servicing – warranty and post-warranty, * Software servicing – 24/7.
MODMEC TRACKER * most effective electricity production compared to a similar stationary installation, facing south, * allows to obtain much more energy on cloudy and even rainy days (>+17% compared to stationary), * enables increased energy production in the mornings and afternoons when the demand for energy is the highest - increased electricity production at the time of peak demand, * proprietary software enabling remote control, viewing parameters, etc. - full online access to supervision, reporting, servicing and security in one application, * automatic snow removal or washing of panels during rain, * possibility of construction on flat areas, on mountain slopes, roofs of industrial halls and on agricultural fields - Agro PV, * modularity and simplicity of design enabling various configurations, * optimizes the space occupied to maximize the production of electricity, * the most favorable NPV despite higher installation costs!
MODMEC TRACKER - software * One MODMEC application for PC and smartphones (Android and iOS), * Data correlation between devices and energy flow control, optimizing revenues from the entire installation, * Securing trackers with their own emergency power supply, * Charging storage facilities when electricity rates are lowest or when PV farms are turned off, * Visual inspection of the entire installation, measurements and alarms, * AI module collecting data and predicting the operation of the connected system of devices, * Real-time impact on the parameters of the energy grid, * Own, separate and secured internet network, * Online access for administrators * 24/7 service
